Installing a SATA Hard Drive in the CTERA C200

To install a SATA hard drive

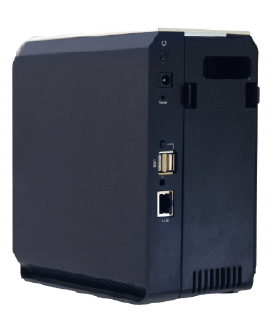

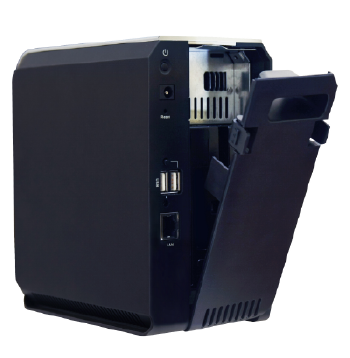

1. Open the appliance's back cover, by pressing the two plastic tabs and then pulling backwards.

   Two slots are revealed.

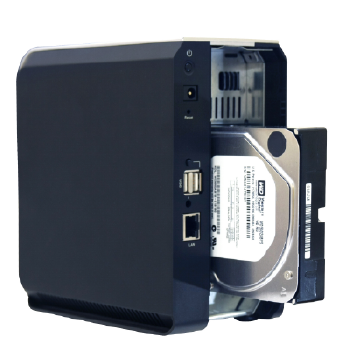

2. Insert the SATA hard drive into a vacant slot, pressing it firmly until it is all the way in.

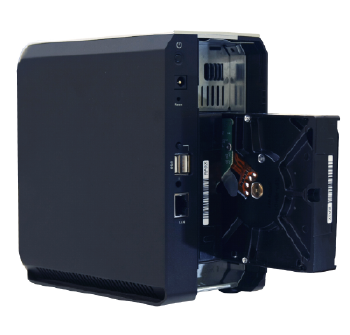

   If you install the drive in left-hand slot, the drive's metal cover should be facing left.



   If you install the drive in the right-hand slot, the drive's metal cover should be facing right.



3. Close the appliance's back cover, by inserting first the bottom of the cover, pressing the tabs, and then pushing forwards.

   The cover should click into place.
