Managing Servers : Viewing Connected Devices

Viewing Connected Devices
You can view information about a server's currently connected devices.
This task can be performed in the Global Administration View only.
To view a server's currently connected devices:
1 Click the server's name in the Main > Servers page.

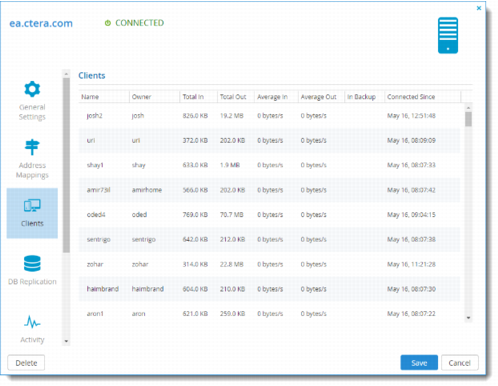

2 Select the Clients tab.
For information on the Client tab fields, see the following table.
This field...
Displays...
Name
The name of the client device.
Owner
The name of the client device's owner.
Total In
The total CTTP traffic sent from the client device to the virtual portal.
Total Out
The total CTTP traffic sent from the virtual portal to the client device.
Average In
The average speed (throughput) of traffic sent from the client device to the virtual portal in bytes/second.
Average Out
The average speed (throughput) of traffic sent from the virtual portal to the client device in bytes/second.
In Backup
Indicates whether the client device is currently backing up files to the CTERA Portal. Devices in backup are marked with the
icon; otherwise, no icon is displayed.
Connected Since
The date and time of connected.
