Installing the CTERA HC400T
In this section
Setting Up the HC400T
The HC400T is a CTERA Edge Filer running on a HP ProLiant MicroServer.

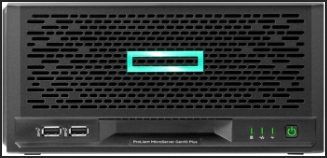

The HC400T Front Panel
The HC400T includes 4 drive bays, behind the front bezel. These drives must not be tampered with unless CTERA support has given permission. On the right of the front panel the lock indicator must show a blue LED.
The front panel includes 2 USB 3.2 ports which can be used to attach peripheral devices, such as a keyboard and mouse.
Note: There are additional USB ports in the back panel, so you can choose to use either the front or back panel USB ports, whichever is more convenient.
Front panel LEDs may indicate if there is a problem with the health of your HC400T. The LEDs are described from left to right.
LED | State | Explanation |
|---|---|---|
Drive activity | Flashing green | Ongoing drive activity. |
Off | No drive activity. | |
NIC status | On (Green) | The HC400T is linked to the network. |
Flashing (Green) | The network link is active. | |
Off | There is no network activity. | |
Health | On (Green) | Normal. |
Flashing (Amber) | One or more components is in degraded condition. | |
Flashing (Amber, blinking at 1 flash per second) | Ambient temperature or server temperature is above the operating temperature range – 10°C to 35°C (50°F to 95°F). | |
Flashing (Red) | One or more components is in critical condition. Attach a monitor and reboot the server and an error message screen showing the affected component is displayed for about 30 seconds. | |
Flashing (Red) | One or more components is in critical condition. Attach a monitor and reboot the server and an error message screen showing the affected component is displayed for about 30 seconds. | |
Power on/Standby button | Flashing green | Ongoing power-on sequence. |
On (Green) | System on and normal operation. | |
On (Amber) | System in standby. | |
Off | No power present. |

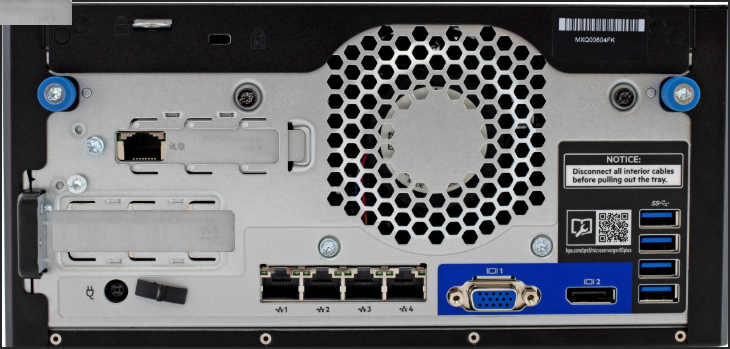

The HC400T Back Panel
Network and power connections are via the HC400T's back panel.
The HC400T back panel contains the following:
Element | Description |
|---|---|
iLO port | An iLO dedicated NIC port. |
Power jack | A power jack to supply power to the HC400T. |
Network ports | Ethernet ports to connect the HC400T to your Ethernet LAN switch or router. |
Video port | A port to connect an analog VGA monitor or projector. |
HDMI port | High-Definition Multimedia Interface (HDMI) port for a high resolution monitor. |
USB ports | 4 USB 3.2 ports. |
